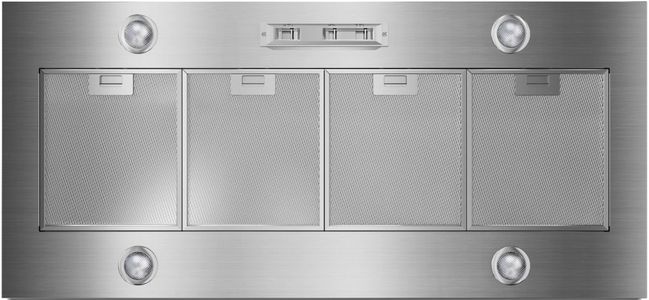

    Whirlpool® 48" Stainless Steel Custom Hood Liner

    Whirlpool

    Model #:

    UVL6048JSS

    Model #: UVL6048JSS
    339450
    Whirlpool
    $1,189.99

    At a Glance

    Product Dimensions 36"h x 48"w x 22"d

    This custom hood liner features a hidden ventilation system mounted to the inside of a custom vent cover (which can be made of metal, wood, plaster or tile), offering a uniquely streamlined look. Designed to work with larger cooking appliances, it also offers you a choice of motors for different levels of ventilation power.Read More

    Sale $1,189.99

    $1,319.99

    Save $130.00

    What We Offer

    Protect Your Purchase

    View Options

    None Selected

    Get to know this product.

    Product Overview

    Product Overview
    3-Speed Hidden Slide Control

    Makes it easy to adjust fan speed while cooking and matches your kitchen style with a clean look.

    LED Lights

    Provides bright, natural-looking light to give you a better view of your food as it cooks.

    LED Night Lights

    Accent your kitchen with a soft, inviting glow.

    585-1170 CFM Motor Class

    Provides powerful airflow to match the high performance of commercial-style ranges and rangetops. This hood can be installed with your choice of a 585 or 1170 CFM motor (sold separately).

    Dishwasher Safe Aluminum Mesh Grease Filter

    Remove grease to keep up with high-heat cooking techniques and feature a durable, easy-to-clean design.

    Useful Documents
    Warranty
    Parts List
    Manual
    Specifications

    General Specs

    Width (in.)48
    Height (in.)36
    Duct Size (in.)10
    Depth (in.)22
    ColorStainless Steel
    PositioningStationary
    Manufacturer Warranty1 Year Limited Warranty
    Color Finish NameStainless Steel
    Range Hood TypeInsert
    ENERGY STAR CertifiedNo
    Appliance Fit Width (in.)48
    Maximum CFM1170
    Bulb TypeLED
    Sones Rating1200
    Fan Speed Options3
    Vent LocationTop
    Ventilation DirectionVertical
    Voltage120
    Amp15
    Frequency60
    Noise Level (Sones)Standard - (High)
    Ventilation TypeDucted

    Details

    Number of Night Light Settings 1
    Task Light Type LED
    Task Lighting Yes

    Controls

    Location of Controls Hidden

    Dimensions

    Maximum Height 36.0 in
    Minimum Height 30.0 in
    Cutout Depth 22.0 in
    Cutout Width 36.0 in

    Features

    Lighting Control Type Slider

    Ventilation System

    Exhaust Vent Location Top
    Sound Max Speed Sones 1200.0
    Blower Type Centrifugal
    Filters Dishwasher-Safe Grease Filters
    Duct Direction Vertical
    Duct Outlet Size10
    Duct Type Round
